Community D4LP

Community D4LP
  • Community D4LP
  • Community D4LP
Producteur:Community
Id de produit / Code de produit:153120 / COMM-D4-LP
État de l‘entrepôt: 0
Autres noms du produit:Community D4LP ceiling speaker, white, Community D4-LP, Community D4 LP, Community D4LP, D4-LP, D4 LP, D4LP
Responsable du produit:

Attention! Le prix de cet article peut avoir changé. Vous pouvez définir le prix actuel et le temps d‘attente avec le responsable du produit.

Prix brut

148.02 EUR

Community D4LP

Community D4LP

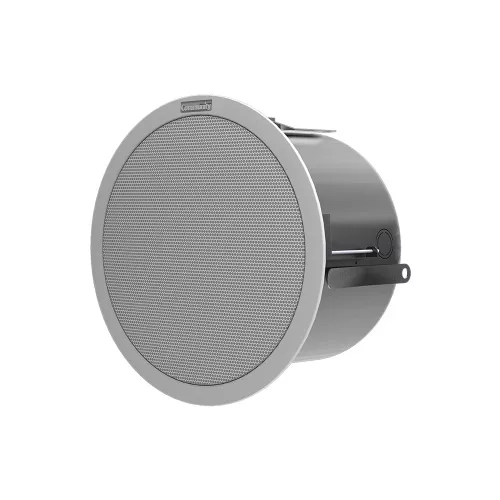

D4LP is the D4 coaxial design in a low profile back can for use when clearances above the ceiling are minimal. The D4 has a wider dispersion than the larger models. The high performance D4 is a true coaxial loudspeaker with a real compression driver concentrically arranged so that the upper frequencies emerge through the center of the low-frequency driver’s magnetic structure and cone via a precisely tapered Tru-Phase™ high-frequency waveguide. This special construction provides consistent, wide dispersion up to 16 kHz, all but eliminating high-frequency narrowing. Further pattern improvement is achieved by precisely mounting the low frequency driver (and its concentric HF driver) centered in the baffle, as contrasted to the offset designs used by others.
The D SERIES offers powerful magnetic structures and efficient coils to ensure high output, which results in more headroom per power amplifier. Each D SERIES ceiling model includes everything needed for standard installations, and has a built-in autoformer allowing it to be used in 8-ohm or 70V/100V applications. The D SERIES ceiling loudspeakers are ETL listed and all models have been tested by ETL to comply with UL1480, UL2043 and CSA60065.

Specifications:

• Finish: Corrosion-resistant zinc plated steel can, white paintable ABS baffle, white powder-coated steel grille
• Nominal Beamwidth (H x V): 140° Conical
• 70V/100V Autoformer: 30W, 15W, 7.5W, 3.75 (@70V only)
• Continuous Max Output: 110 dB (116 dB Peak)
• Power Handling: 60W continuous @ 8 ohms
• Operating Range: 90 Hz – 18.5 kHz
• Sensitivity (1W/1m): 92 dB
• Dimensions (H x Dia): 3.6" x 9.8" (91 x 248 mm)
• Transducers: LF - 1 x 4.5”, HF - 1 x .75” exit compression driver
